Thin Motor
High Torque & Efficiency
Thin Motor
Thin motors distinguished by a large through hole are engineered to deliver high torque and efficiency while preserving a substantial inner diameter. Their slim form factor makes them ideal for confined spaces or applications where passing cables or mechanical parts through the motor is needed. Thin motors provide robust performance across a wide range of industries.
Alva's Thin Motors
Alva specializes in slotless, frameless thin motors designed for applications where every millimeter matters. Unlike conventional iron-core motors, our motors feature an ironless winding architecture that eliminates cogging torque, reduces torque ripple, and delivers exceptionally smooth motion.
Combined with our FiberPrinting™ manufacturing technology, Alva's thin motors offer:
- Large through-hole designs without compromising torque output
- High torque density in an ultra-thin form factor
- Zero cogging torque for smooth, precise motion
- Low weight and high efficiency
To learn more about this system, and about our motor technology, please contact us and we can answer all your questions.

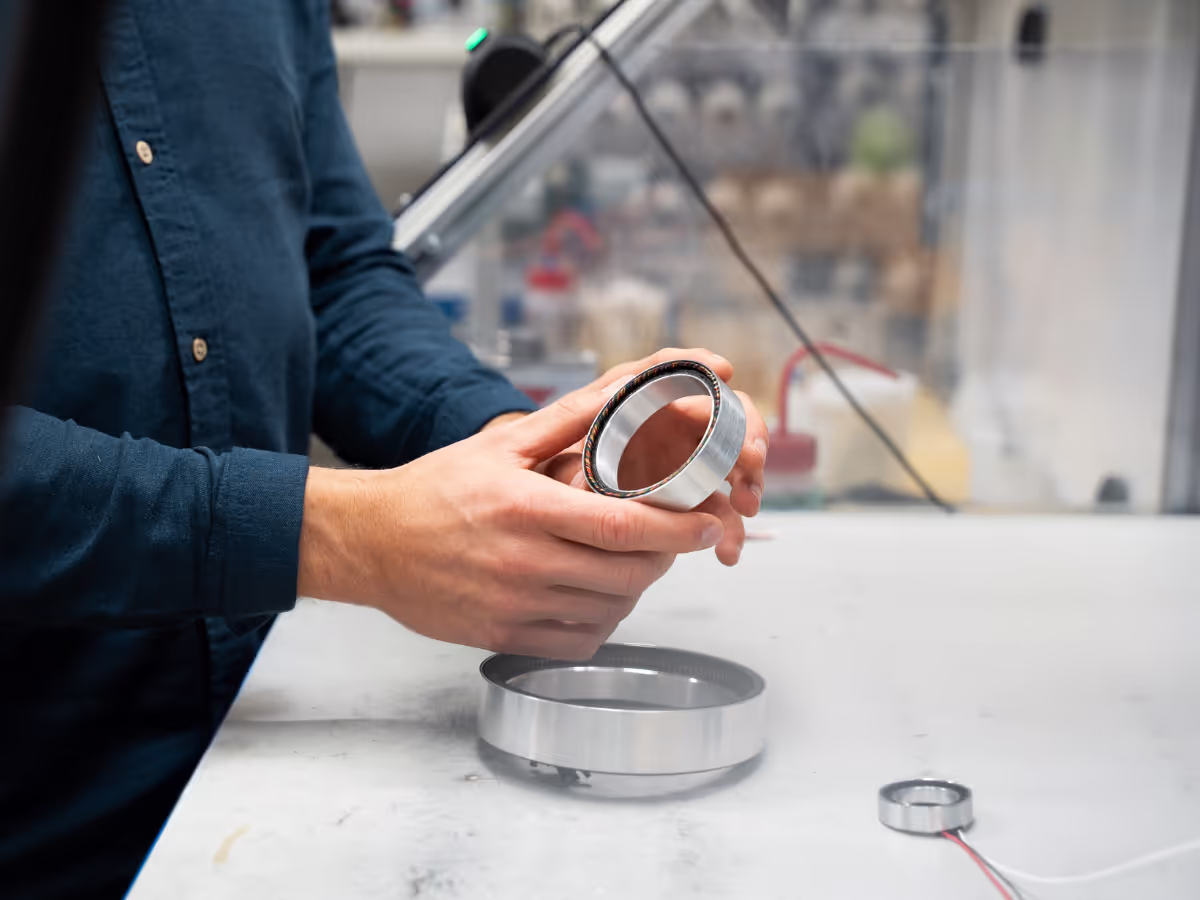

Custom Thin Motor
Alva motors are designed around the FiberPrinting™ technology that allows us to customize the diameter and stack length of the design to maintain the thin profile and ratio of the motors OD to ID. From 25mm OD up to the largest motor needs for our customers.
| Header | Header | Header | Header |
|---|---|---|---|
| Cell | Cell | Cell | Cell |
| Cell | Cell | Cell | Cell |
| Cell | Cell | Cell | Cell |
| Cell | Cell | Cell | Cell |
Thin motors offer several key advantages compared to traditional iron-core motor designs. When transitioning to a thin motor, users can expect the following benefits:
Space Efficiency:
The reduced axial length enables more compact system designs, making thin motors particularly well-suited for handheld and space-constrained applications. In addition, the large through-hole relative to the motor’s outer diameter provides designers with greater flexibility by allowing cables, shafts, and other components to pass through the center of the motor.
High Torque Density:
Despite their compact profile, ultra-thin motors are engineered to deliver high torque output relative to their size. This combination of power and compactness makes them ideal for applications that demand strong performance within limited space.
Reduced Weight:
The slim profile and smaller overall size of thin motors help decrease the weight of the end device or system. This is especially beneficial in industries such as aerospace, robotics, and medical technology, where minimizing weight is a critical design consideration. directly.
Thin Motor Applications
Thin motors are indispensable in any application where space is limited, but performance must remain uncompromised. Below are the key industries and use‑cases that rely on thin motor technology:
- Precision Gimbals & Pedestals
- Medical Devices
- Robotics & Unmanned Systems
- Rim Drives & Thrusters
- Aerospace Actuators
- Semiconductor Manufacturing
- Industrial Automation
A thin motor is an electric motor designed with a reduced axial length, resulting in a low-profile form factor. These motors are ideal for applications where installation space is limited but high performance is still required.
The primary difference is the motor's geometry. Thin motors have a much shorter axial length and often feature a larger through hole relative to their outer diameter, allowing for more compact and flexible system designs.
Yes. Many thin motors are designed with high torque density, enabling them to deliver substantial torque despite their compact size. This makes them suitable for robotics, automation, medical devices, and aerospace applications.
Key benefits include reduced installation space, lower system weight, high torque density, improved design flexibility, and the ability to route components through the motor's center opening.
Efficiency depends on the specific motor design and application. However, Alva’s thin motors are engineered to provide excellent performance and efficiency while maintaining a compact profile.
Thin motors are commonly used in medical equipment, robotics, aerospace systems, semiconductor manufacturing equipment, handheld devices, packaging machinery, and precision automation systems.
Important factors include torque requirements, speed range, available installation space, operating environment, duty cycle, thermal management, and control system compatibility.
Yes. Their compact size and reduced weight make them particularly attractive for handheld equipment, portable systems, and other applications where space and weight are critical design factors.
Get in Touch
Talk to an engineer or request a quote today.
